Designed using Eaton’s largest 2650 rotating group with 170 degree lobe helix angle for unrivalled thermal efficiency
Inverted supercharger design for increased intercooler area and maximum hood clearance
Front Drive/Front Inlet design for shorter less restrictive intake path
Latest high-density fin, extruded tube intercooler core ensures maximum thermal transfer
Dual pass charge air and coolant in intercooler core for increased thermal efficiency
New CAI Tube and Airbox design with larger MAF tube
Designed & Manufactured by Harrop to OE levels of appearance and operation
Harrop has taken Mustang Performance to the next level with the release of the new TVS2650 Supercharger kit, which is built around the largest, most-efficient rotating group ever produced by Eaton, and found on the 2020 Shelby GT500. As a master distributor and technology partner of Eaton Supercharger and Traction products for over 12 years and having designed and manufactured Supercharger systems for Ford and Roush, Harrop has leveraged their OEM design and manufacturing capability to design a world leading system that is unrivalled in functionality and performance.
The all new inverted Supercharger design means the latest Front Drive / Front Inlet configuration can be utilized, which allows for a shorter, less restrictive intake path maximizing airflow and giving superior boost response. The main benefit of an inverted supercharger is maximizing Intercooler core size and this is where the Harrop system is second to none. The industry standard is dual pass coolant but the Harrop design features dual pass air cooling as well, which ensures industry leading air temperatures post intercooler.
The instantaneous boost response from the positive displacement Supercharger provides maximum torque from idle through the rev range. Drivability is enhanced by the integrated bypass valve that dramatically reduces drag (parasitic loss) from the Supercharger rotating group and this also means better fuel consumption in “off boost” everyday driving.

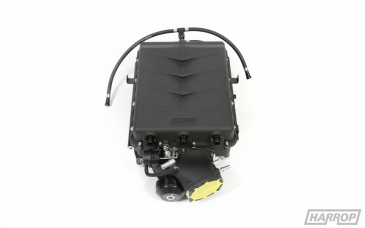

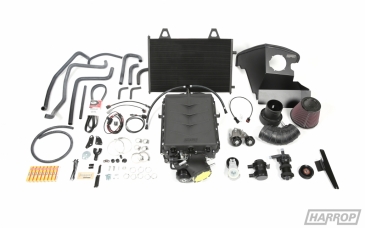

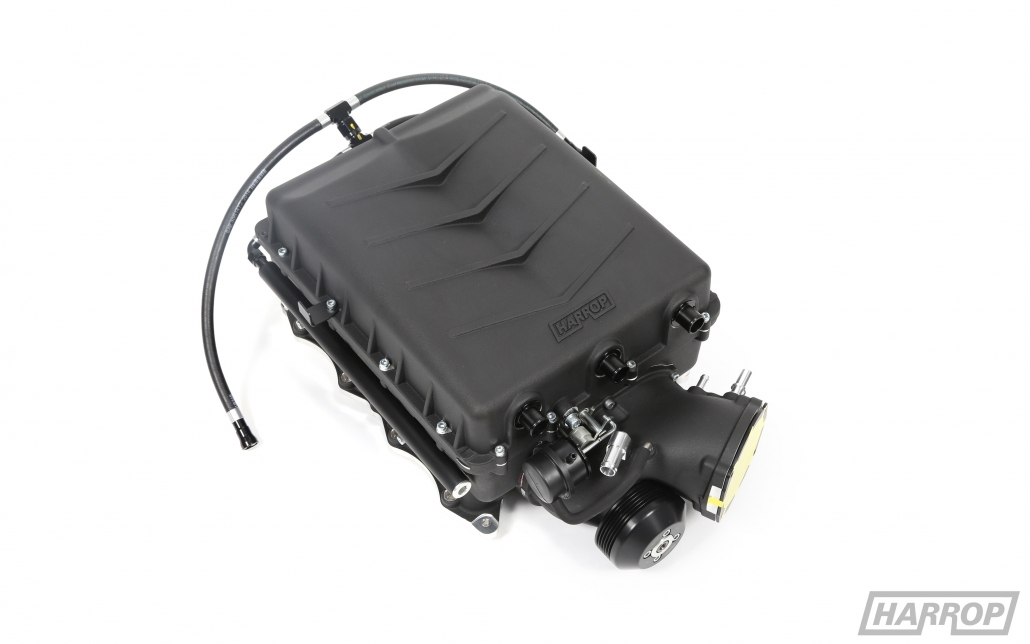

Harrop TVS2650 Supercharger head unit with integrated bypass valve and choice of drive pulley size
High flow cast aluminium intake manifold with anti-heat transfer insulation spacers
Industry leading charge air dual pass Intercooler cores featuring unique thermal sealing
Extruded aluminium fuel rails with high flow DW 1000cc injectors
High efficiency heat exchanger with maximum surface area and combined mounting brackets
Intercooler reservoir bottle and high volume electric water pump with wiring kit
Cold Air intake featuring oversize K&N filter and MAF tube for maximum filtration with minimum restriction
NGK high performance spark plugs
All associated fasteners, wiring looms, moulded hoses and fittings required
Stage 1 @ 8 psi – 610hp / 507 ft-lbs (+215hp / +129 ft-lbs over stock)
Capable of 1100+ hp with supporting engine modifications
Note – Quoted power figures are measured at the hubs on our Harrop HQ dynamometer
TVS2650 Supercharger Kit (2015-2017)
ADD TO CART
TVS2650 Supercharger Kit (2018+)
ADD TO CART
Products sold without calibration require the consumer and installer take on the responsibility to tune the vehicle on a reasonable basis for emissions compliance. Products provided with no calibration are not eligible for supplemental warranty and are not legal for use in the state of California. Please visit the SEMA emissions page to check your local emission requirements.
Kits sold with calibration are CARB compliant for use in California and 50 state legal, any kits sold outside of the USA will require the end consumer to check and verify emission compliance with there local laws and regulations. It is the responsibility of the installer and end user to ensure that this product is being used within compliance of all applicable laws and regulations.
