Part # 99-KSM61K46 Out of Stock




  • Designed using Eaton TVS technology including 4 lobe rotors for unrivaled thermal efficiency

  • Available to suit VK56VD Engine (Second Generation Nissan Titan | 2016+)

  • Kit available for both conventional and electrically controlled thermostat engine configurations

  • Front Drive/Front Inlet design with left hand biased intake for shorter, less restrictive intake path

  • Intake accepts factory throttle body

  • Latest high-density fin, extruded tube intercooler core features dual pass coolant design

  • Interfaces with factory and aftermarket Air boxes, and retains all factory ancillaries including A/C and requires no cutting or fabrication by the installer

  • Variable boost options available

  • Designed & Manufactured by Harrop to OE levels of appearance and operation

As a master distributor and technology partner of Eaton Supercharger and Traction products for over 12 years, Harrop utilized their OEM design and manufacturing capability to release the world’s first aftermarket Supercharger system featuring TVS technology to suit the VK56VD (direct injection) V8 engine found in the Titan, Armada and Y62 Patrol.

Harrop FDFI (Front Drive Front Inlet) Supercharger systems feature industry leading Intercooler technology to ensure optimum thermal efficiency through advanced intercooler design. The Harrop cast aluminium manifold incorporates a large twin pass intercooler core that is located directly under the Supercharger discharge port to maximize Intercooler surface area. The unique intercooler system coupled with large front mount heat exchanger and high flow Bosch intercooler pump, provides greater thermal and volumetric efficiency to unleash the performance potential of the VK56 V8 engine in both on-road and off-road situations.

All Harrop Supercharger kits are expertly assembled by qualified Supercharger technicians to AS9100 quality standards, before individually tested in-house on a dynamometer to ensure reliability and durability

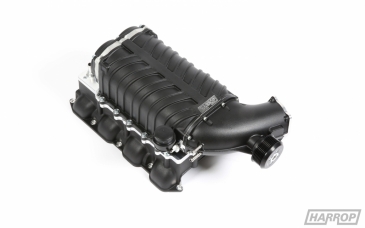

  • Harrop TVS2300 FDFI Supercharger with lefthand inlet cover – factory throttle body bolt pattern

  • Supercharger intake manifold including high efficiency dual pass intercooler core

  • 7PK FEAD drive idler bracket and 7PK Supercharger drive belt

  • High efficiency heat exchanger with maximum surface area and integrated mounting brackets

  • High volume Electric Intercooler pump, Coolant Reservoir and moulded hoses

  • Plug-in wiring looms for all necessary engine sensors – IAT breakout from MAF sensor, Throttle loom extension and Intercooler pump loom

  • All associated fasteners, hoses and fittings required


  • Supercharged = 397HP and 445 ft-lbs (Stock - 296HP and 309 ft-lbs)

  • Capable of over 800hp+ with supporting engine modifications

  • Note – Quoted power figures are measured at the wheels

Item# Status Description
99-KSM61K46 Out of Stock

TVS2300 Supercharger Kit (2016-2021)
